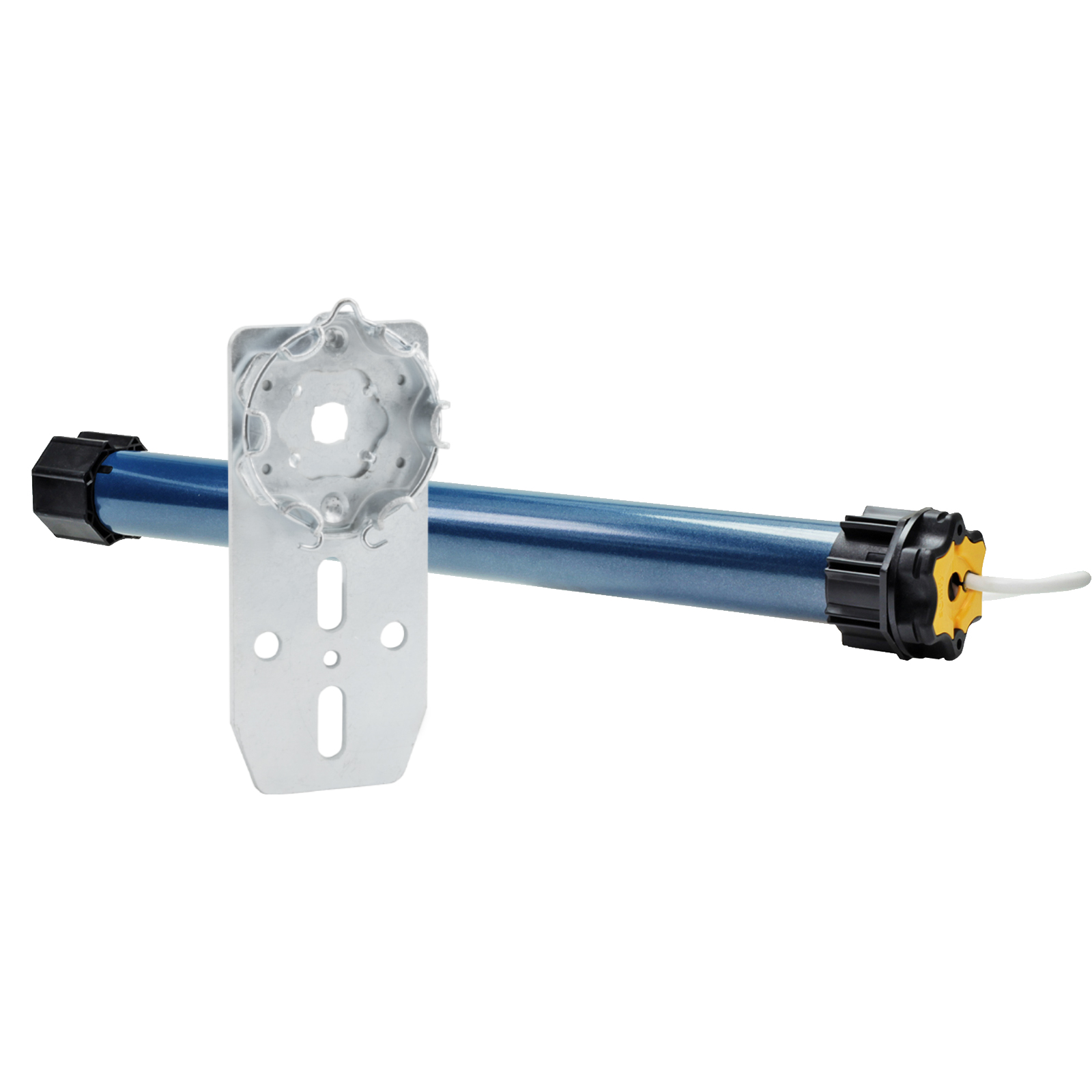

Somfy Roller Shutter Motor Ilmo 2 50 WT 6/17, 10/17, 15/17, 20/17, 30/17 (6-30Nm)
€114.90*
Available, delivery time: 1-3 days
Product information "Somfy Roller Shutter Motor Ilmo 2 50 WT 6/17, 10/17, 15/17, 20/17, 30/17 (6-30Nm)"
Our clever drive offers a fully automatic plug & play mode or a manual set mode, which can be set via the end positions.
If the roller shutter hits an obstacle,
if it hits an obstacle the motor does this and reacts with a STOP.
The obstacle is released and the roller shutter, property and personal protection
is guaranteed.
In addition, the motor switches itself on. If the roller shutter
remains stuck in the guide rails due to frost during an up or down command, this prevents damage to the roller shutter.
- Tensile force of 06Nm / 12 kg
- Fully automatic end position detection (Plug & Play)
- Freeze protection, obstacle detection with shaft clip connector
- From 50 mm octagonal shaft
- 2 year guarantee
Product highlights
- Maxi - roller shutter motor
- Made in Europe
- Freeze protection, obstacle detection with shaft clip connector
- Regular end position correction (every 60 cycles)
- Obstacle detection when closing / frost detection when opening
- Differentiation between obstacle and friction
- Thermal switch (overload protection)
- Endpoints are retained even after a power failure
- Suitable for different shafts, adaptation possible
- Can be combined with conventional switches, controls, timers, relays and radio systems
| Motorfunktionen: | Festfrierschutz, Hinderniserkennung, Plug & Play Motor |
|---|---|
| Motortyp: | Standard-Elektronisch |
| Steuerungsart: | Kabelgebunden |
| Wellendurchmesser: | Für 60mm Achtkantwelle |
| Bezeichnung : | Ilmo 2 50 WT 6/17 | Ilmo 2 50 WT 10/17 | Ilmo 2 50 WT 15/17 | Ilmo 2 50 WT 20/17 | Ilmo 2 50 WT 30/17 |
| Motor : | Maxi - Motor | Maxi - Motor | Maxi - Motor | Maxi - Motor | Maxi - Motor |
| Motorart : | Mechanischer Antrieb | Mechanischer Antrieb | Mechanischer Antrieb | Mechanischer Antrieb | Mechanischer Antrieb |
| Rolladenwelle : | 60 er | 60 er | 60 er | 60 er | 60 er |
| Zugkraft in Nm : | 6 Nm | 10 Nm | 15 Nm | 20 Nm | 30 Nm |
| max Zugkraft (kg) : | 12 | 21 | 32 | 43 | 65 |
| Drehzahl Umin : | 17 U/min | 17 U/min | 17 U/min | 17 U/min | 17 U/min |
| Leistungsaufnahme Watt : | 90 Watt | 120 Watt | 140 Watt | 160 Watt | 240 Watt |
| Nennspannung V: | 230 V | 230 V | 230 V | 230 V | 230 V |
| Frequenz: | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| Schutzart : | IP 44 | IP 44 | IP 44 | IP 44 | IP 44 |
| Thermoschalter : | Ja | Ja | Ja | Ja | Ja |
| Endabschaltung : | 28 | 28 | 28 | 28 | 28 |
| Motorkopf cm : | 2,00 cm | 2,00 cm | 2,00 cm | 2,00 cm | 2,00 cm |
| Rohrdurchmesser cm : | 4,50 cm | 4,50 cm | 4,50 cm | 4,50 cm | 4,50 cm |
| Motorlänge cm : | 52,50 cm | 52,50 cm | 54,50 cm | 67,50 cm | 69,50 cm |
| Kabellänge : | 3 m | 3 m | 3 m | 3 m | 3 m |
| Garantie : | 5 Jahre | 5 Jahre | 5 Jahre | 5 Jahre | 5 Jahre |
