NOBILY Professional Set P4 13Nm incl. Quattro S50
Product number:
1114001380020
Product information "NOBILY Professional Set P4 13Nm incl. Quattro S50"
You have decided in favor of our high-performance
PROFI roller shutter set
in the latest version? A good choice, move your shutters automatically and save time and money! More comfort in everyday life, the ideal solution for retrofitting existing roller shutters or quite simply as a complete new installation
- Mini - Motor
- 13 Nm / 36 kg tensile force
- for the 40 mm octagonal shaft
- mechanical limit switch

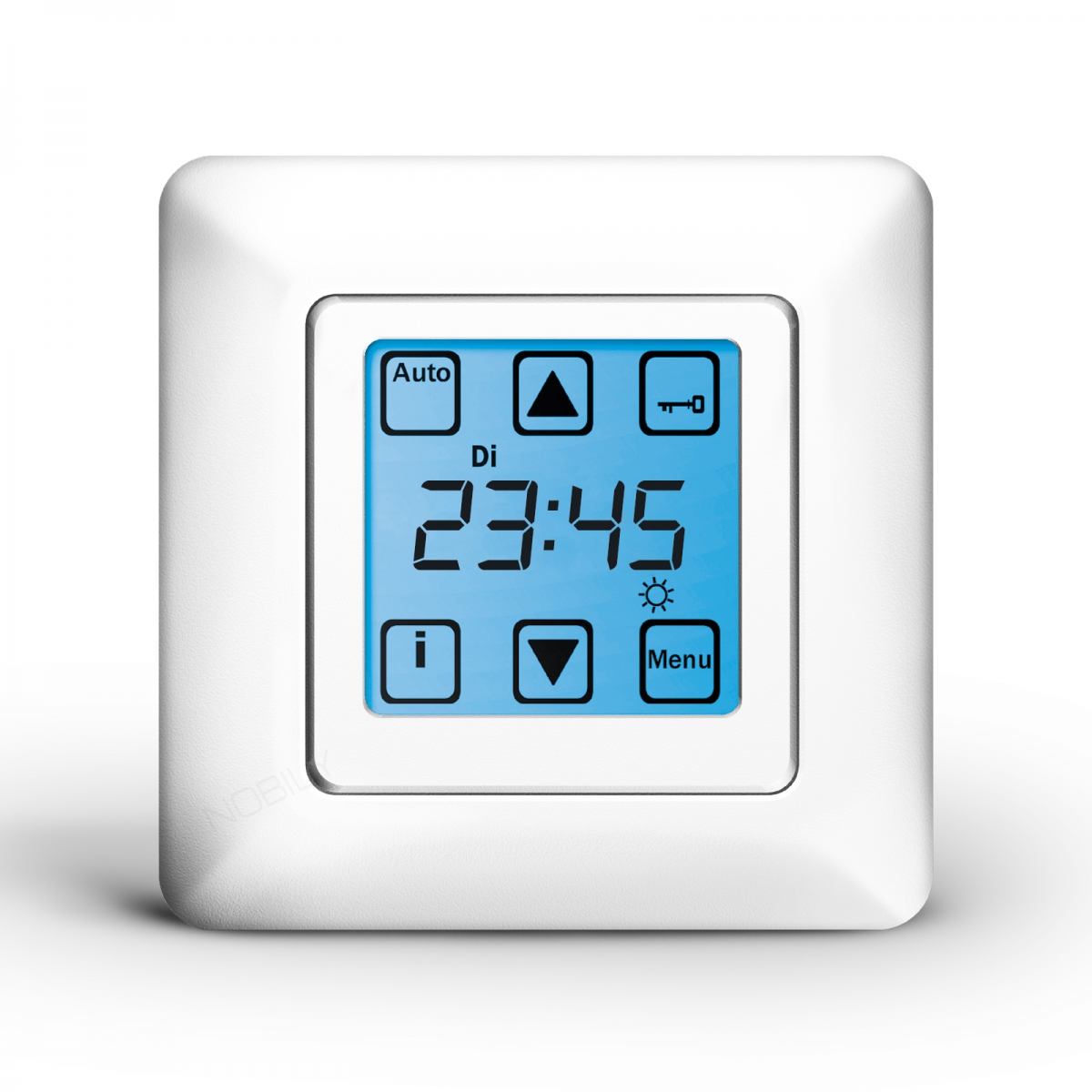

- Quattro S50 roller shutter timer
- Quattro S50 Made in Germany
| Motortyp: | Standard-Mechanisch |
|---|---|
| Sonnensensor anschließbar: | ja |
| Steuerungsart: | Kabelgebunden |
| Steuerungsfunktionen: | Astro Funktion, Automatikbetrieb, Memory Funktion, Security Urlaubsschaltung, Tagesprogramm, Wochenprogramm |
| Wellendurchmesser: | Für 40mm Achtkantwelle |
| Name: | P4 13 / 14-40 |
| Motor: | Mini - Motor |
| Motor type: | Mechanical drive |
| Roller shutter shaft: | 40 er |
| Tensile force in Nm: | 13 Nm |
| max pulling force in kg: | 36 |
| Speed Umin: | 14 rpm |
| Power consumption in watts: | 121 watts |
| Current consumption A: | 0.53 A |
| Nominal voltage V: | 230 V |
| Frequency: | 50 Hz |
| Degree of protection: | IP 44 |
| Thermal switch: | Yes |
| Limit switch-off: | 22 |
| Motor head cm: | 1.20 cm |
| Pipe diameter cm: | 3.50 cm |
| Motor length cm: | 47.60 cm |
| max roller shutter area plastic: | 5.0 m 2 |
| max roller shutter area Alu: | 3.3 m 2 |
| max roller shutter area wood: | ------ |
| Guarantee: | 5 years |
| Article No. : | 1114001300001 |
| EAN no. : | 4260355820029 |
