COMPLETE SET PE4 13Nm incl. Time Control
Product number:
KS-PE4TC-100
Product information "COMPLETE SET PE4 13Nm incl. Time Control"
Have you decided in favor of our high-performance, state-of-the-art PROFI roller shutter set? A good choice, move your shutters automatically and save time and money! More comfort in everyday life, the ideal solution for retrofitting existing roller shutters or quite simply as a complete new installation.

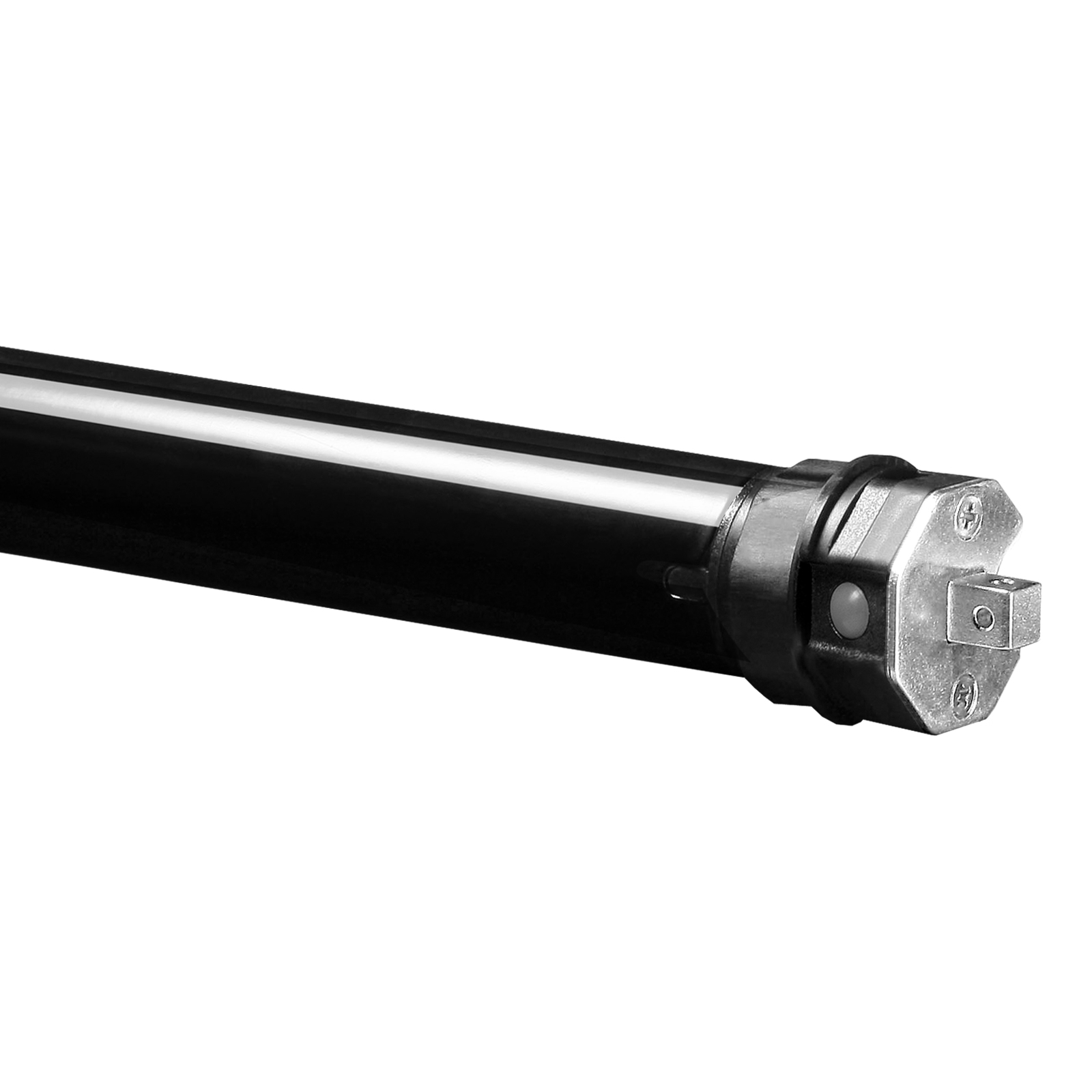

- NOBILY Mini - Motor
- 13 Nm / 36 kg tensile force
- electronic limit switch
- for the 40 mm octagonal shaft
Product highlights
- Mini roller shutter motor
- electronic limit switch
- Convenient setting of the end positions
- reliable and powerful
- easy and safe installation
- Thermal switch (overload protection)
- one of the quietest motors on the market
- Suitable for different shafts, adaptation possible
- Can be combined with conventional switches, controls, timers, relays and radio systems
- Roller shutter timer Time Control
| Zugkraft (Nm): | 13 |
|---|---|
| Umdrehungen/min (Upm): | 14 |
| Nennpannung (V): | 230 |
| Motortyp: | Standard Elektronisch |
| Produktumfang: | Komplettset (Motor + Steuerung + Mechanik) |
| Steuerungsart: | Kabelgebunden |
| Steuerungsfunktionen: | Automatikbetrieb, Memory Funktion, Security Urlaubsschaltung, Tagesprogramm, Wochenprogramm |
| Wellendurchmesser: | 40mm Achtkantwelle (SW40) |
| Zugkraft (kg): | 36 |
| Name: | PE4 13 / 14-40 |
| Motor: | Mini - Motor |
| Motor type: | Electronic drive |
| Roller shutter shaft: | 40 er |
| Tensile force in Nm: | 13 Nm |
| max pulling force (kg): | 36 |
| Speed Umin: | 14 rpm |
| Power consumption in watts: | 121 watts |
| Current consumption A: | 0.53 A |
| Nominal voltage V: | 230 V |
| Frequency: | 50 Hz |
| Degree of protection: | IP 44 |
| Thermal switch: | Yes |
| Motor head cm: | 1.28 cm |
| Pipe diameter cm: | 3.50 cm |
| Motor length cm: | 59.00 cm |
| Cable length: | 2.0 m |
| Guarantee: | 5 years |
| Article No. : | 1134001300001 |
| EAN no. : | 4260355821309 |
